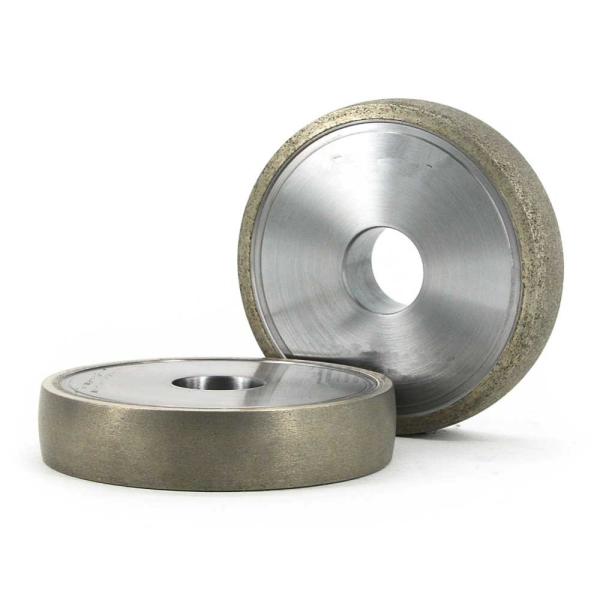

    High Speed 1A1 Diamond Grinding Wheel , Glass Edging Diamond Cut Off Wheels For Metal

    Ask Lasest Price
    Brand Name : OEM
    Certification : MPA
    Price : Negotiable
    Supply Ability : 10000 pcs per month
    Delivery Time : 15 days
    Model Number : 1A1
    • Product Details
    • Company Profile

    High Speed 1A1 Diamond Grinding Wheel , Glass Edging Diamond Cut Off Wheels For Metal

    1A1 Flat metal bond glass edging diamond grinding wheel wet use / metal grinding wheel


    Wheels for Glass Straight-line Edging Machine
    NAMESEGMENT TYPESPEC(MM)GRITFUNCTION
    DHWXT
    Diamond Wheels Used for Glass Straight-line Edging MachineContinuous Rim13012683580Used for Rough Grinding Bottom Edge
    15022810100
    175251012120
    Full Segment25.412150
    Half Segment3215180
    Continuous Rim50240for Fine Grinding& Finish Grinding Glass Bottom to Modify the Working Surface after
    75320
    50.8


    Products Usage of diamond grinding disk:

    How to choose abrasive:

    There are two main types of abrasives: diamond (SD, ND) and cubic boron nitride (CBN). Correct selection of abrasives is the key to effective grinding.


    AbrasiveApplication
    DiamondSD

    Grinding, finishing and polishing of cemented carbide, glass cutting and grinding tools, magnetic materials, etc.



    ND

    CBN

    CBN
    Precision grinding and polishing of various kinds of steel, such as bearing steel, stainless steel, carbide steel and tools, die steel, etc.

    How to Choose Binders:

    BondApplication

    Resion-bonded

    (B)

    Grinding efficiency is high and self-sharpening is good. It is mainly used for semi-finishing, finishing and polishing, but not for heavy load grinding.

    Vitrified-bonded

    (V)

    It is used for forming grinding with large contact area and sintered grinding of superhard materials.

    Metal-bonded

    (M)

    Diamond abrasives are used for rough grinding of cemented carbides and grinding and cutting of high-hardness non-metallic materials such as optical glass, semiconductor materials, ceramics, etc.

    CBN Abrasive Tool Used in Metal Material Forming and Honing of Alloy Steel

    Electroplated-bonded

    (P)

    Production of various small, special-shaped products, can be used in the processing of high-hard metal, non-metallic materials.

    How to choose the grit:

    Rough GrindingSemi-grindingPrecision GrindingPolishing Grinding
    Grit50/60-120/140120/140-200/230200/230-M36/54M22/M36-M0/0.5
